Microphone Systems



Clearone BMA 360 Ceiling Mounted Beamforming Microphone:
The world’s first truly wideband, frequency invariant beamforming mic array with uniform gain response across all frequency bands.




It is a professional-grade microphone array with

  • adaptive steering beamforming technology.

  • built-in ClearOne audio DSP and it’s next-generation Acoustic Echo Cancellation.

  • built-in 4-channel 8 ohm amplifier.

  • direct USB connection to a PC/Microsoft Teams room system.

  • Dante support.

  • daisy chain support (up to 3 units max.).

  • Beamwidths: 35 degree , 45 degree and 55 degree with Frequency Invariance

  • Beamforming Range: 100 Hz to 20 KHz



  • Number of Beams: 6, 8, 10, 11, or 12.

  • Room Patterns:

    • Full Circle/Square,

    • Rectangular,

    • SemiCircle/Classroom.

  • Coverage Sizes: from 10ft x 10ft up to 36ft x 20ft.

  • Ceiling Height: Configurable from 7ft to 20ft



The ultra-sleek design fits into a 2' x 4' ceiling.  Suitable for any conferencing environment and delivers the clearest audio pickup available.



24 microphone elements steer pickup patterns towards participants and reject unwanted noise and reflections, offering superb and unmatched performance for group conferencing environments.



ClearOne Ceiling Microphone Array
2 versions available:
  • ClearOne Ceiling Microphone Array Analog-X
  • ClearOne Ceiling Microphone Array Dante
An advanced tri-element analog ceiling microphone array for conferencing and sound reinforcement applications with superior sound quality and adjustability for desired height.

3 wide-range microphones mounted in a single array, provide the rich sound of 3 individual unidirectional microphones while maintaining full 360-degree coverage.
Easily installed and affordable.  High-quality audio.  Suitable for any conferencing application with the most unobtrusive microphone placement option.
The features supported are:
  • Optimized for speech-intelligibility with full audio bandwidth and highest SNR.

  • 100% shielding against RF interference.
  • LED indicators for On/Mute.
  • Built-in, low-cut filter, rejects unwanted noise and increases intelligibility
  • Adaptive ambient gating controls constantly adjust to changing environmental noise and counteract unwanted audio.
  • First Microphone Priority eliminates any hollow-sounding audio by balancing the elements, focusing audio pickup on the person speaking and maximizing audio clarity.
  • 2m drop-down cables are included for varying ceiling heights.
  • Optimized for ClearOne audio DSP.  Works with other 3rd-party DSP mixers too.
  • Connectivity to an audio DSP:
  • For ClearOne Ceiling Microphone Array Analog-X:

  • using 1 run of CAT6 Ethernet cable (24AWG, 60m max.) via a pair of junction box & interface box.
  • Multiple ceiling microphone arrays can be connected to a ClearOne audio DSP for covering a large room space.
  • For ClearOne Ceiling Microphone Array Dante:
  • using 1 run of CAT6 Ethernet cable (24AWG, 10m max.) via a pair of Dante junction box & interface box.
  • can daisy-chain up to 4 mic arrays, 12 channels, for one combined system.​​

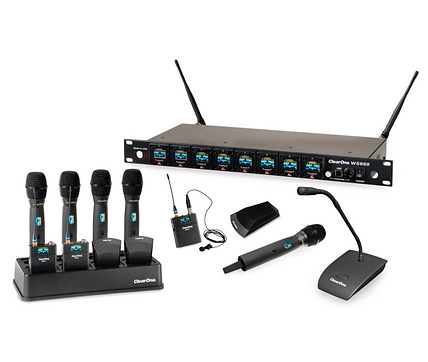

ClearOne WS800 Digital Wireless Microphone System
The industry's best processing and security with easy-to-use setup.



4 models of wireless microphones with built-in transmitters available:

  • handheld.

  • lavalier.

  • desktop boundary.

  • gooseneck.



A wireless receiver with either 4 or 8 channels.

Can be used with any combination of wireless mics.



  • Optimized to work with ClearOne audio DSP.

  • Uses multiple band RF technology.

  • Uses 24-bit digital signal processing for unmatched, crystal-clear audio quality.

  • 256-bit strong encryption (conforming to US Govt. AES specifications) for robust security that fits any application.

  • Ability to daisy-chain up to a 32-channel system to support large venues.

  • Extension antenna kits to add wider wireless coverage.

ClearOne WS800 digital wireless microphone system | AudeoNet
